Full Color P5 LED Indoor Display

Model NO.:
DHX-P5-full color-001
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Application:
Advertising
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
5mm
IP Rating:
IP43
Certification:
CE, RoHS
Pixel Density:
40,000 dots / m²
System Operating Platform:
WIN XP
Category:
LED Display
Display Capabilities:
Video, Text, Graphics, etc
Lifetime of LEDs:
More Than 100, 000 Hours
Business Type:
Manufacturer
Brightness:
1800CD/Sqm
View Angle:
Horizontal 110° Vertical 60°
Module`S Material:
SMD
Humidity-Operating:
10% to 95%
Export Markets:
Global
Additional Info.
Trademark:
DHX
Packing:
Wooden Case
Standard:
CE, ROHS
Origin:
Shenzhen China
Production Capacity:
1000sqm/Month
Product Description
Product Name:

full color P5 led indoor display for rent

1)High brightness;
2)Good flatness;
3)High contrast;
4)High energy saving display can save 50% more than traditional display.

* Products Advantages:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that’s the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!

Pixel Pitch Pixel Configuration
5mm SMD (1-Red, 1-Green,1-Blue)

LED
Color Brand Origin wavelength Brightness
Red OPTO TW 625±5nm 600 + 20% mcd
Green SILAN CN 525±5nm 1800 + 20% mcd
Blue SILAN CN 465±5nm 450 + 20% mcd
Color matching R:G:B/3:6:1, In order to reach the best white balance effect.

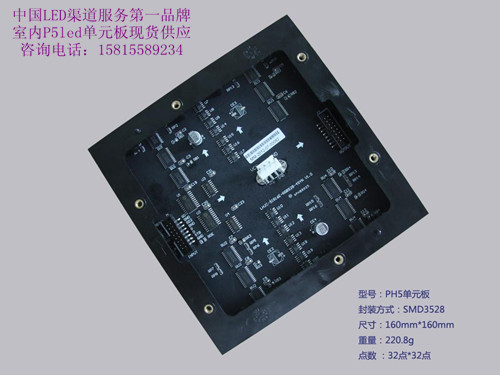

LED Module Parameter
Dimension Definition Shell Working Voltage
Mm Dots Hi-quality &anti-fire PC V
160×160 32x 32 DC5

Cabinet Parameter
Dimension definition Material protection level weight
mm dots Front/Rear kg
640*640 128*128 Steel IP43/IP43 20

Whole LED display Parameter
Density 40,000dots/m²
Best viewing distanse 4m-55m
Display Capabilities Video, Text, Graphics, etc
Input Signal HDTV,NTSC, PAL, S-video, VGA
Display Colors 16.7M colors
Processing/Color Depth 14bit
Gray Levels 4096 levels Shades
Refresh Rate >600Hz (adjustable)
Avpower Consumption 600Watt / m²
Lifetime of LEDs More than 100,000 Hours
Input Voltage AC220V / 380V + 10%
(three items and five lines
Exchange frame speed 60Hz
Vertical Viewing Angle 60°
Horizontal Viewing Angle 120°
Way of Drive 1/16 scan constant current
Control mode To be synchronized with computer monitor
Brightness >1800cd / m² ( adjustable )
Requirement of System environment – 20ºC~ 60ºC, 10% – 90%RH
Communication Distance For 5 types of line(IBDN), no more than 150 meters; for fiber, no more than 5000 meters.
